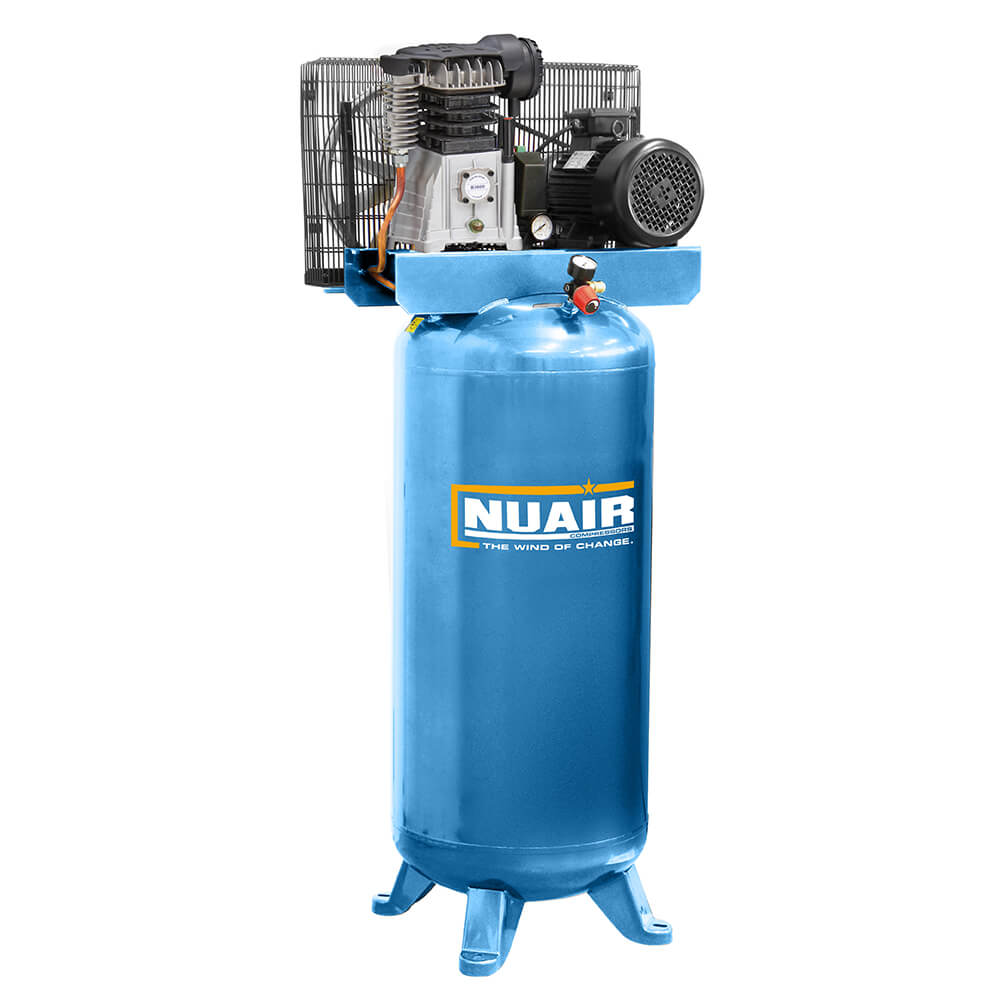

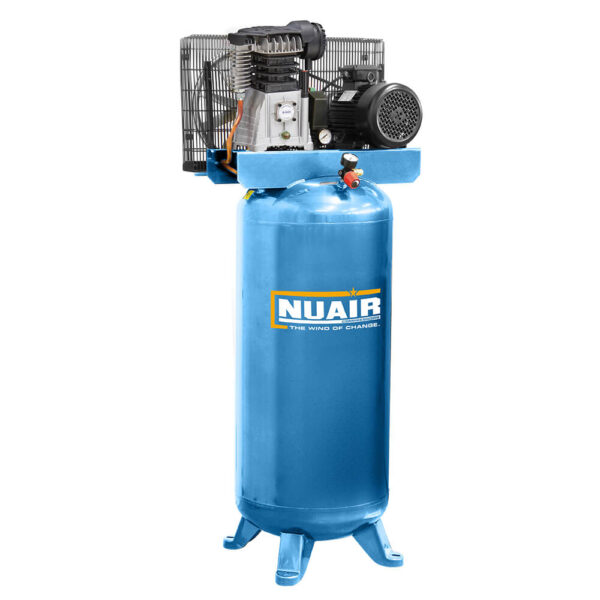

Nuair Vertical Compressor NB3800-PRO/150V FM3 – PRO (16A)

£775.00 Ex. VAT

SKU: S-36HY504FPS149 Category:

Description

NB3800-PRO/150V FM3 – PRO Vertical Stationary (16a)

  • Nuair vertical compressor
  • Fitted with proven Low Noise B38B single stage lubricated compressor pump unit
  • Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures
  • Belt driven arrangement allows lower speed operation and reduced noise levels
  • Economical stop/start control
  • Large Vertical 150Lt air receiver to CE standards
  • High quality electric motor, 2.2kW (3Hp) 230v/3/50hz with full overload protection
  • Capacity 355 L/min maximum displacement, pressure 10 Bar (145 psi)
  • Weight – 116 KG

Nuair Vertical Compressor Specification

kW – 2.2
Hp – 3
L/min – 355
c.f.m – 13.95
Bar – 10
Psi– 145
Receiver Size – 150Lt
Volt – 230
Kg – 116
Product L x W x H (mm) – 760 x 600 x 1980
Type (Oil-Free/ Lubricated + Electric/Petrol) – Stationary

Additional information

Weight 60000 kg
